INLET DISTRIBUTORS & OUTLET COLLECTORS

  • WEDGE WIRE SCREEN



For new construction and replacement or retrofit.

Pre-profile shaped wires are resistance welded on Support Rods at an interval spacing giving a robust and steady screen construction. This provides a continuous slot opening and a two-point contact of media particles on the screen surface. As a result, plugging is effectively eliminated. The continuous slot opening maximizes effective flow area.

Used to collect treated liquid or gas, retain media such as catalyst, sand, molecular sieve or activated carbon and to distribute flow during backwash and regeneration.



TYPICAL APPLICATIONS:

  • Catalyst Reactors
  • Mole Sieve Absorbers
  • Carbon Bed
  • Ion Exchangeers
  • Clay Filters
  • Gravity Filters

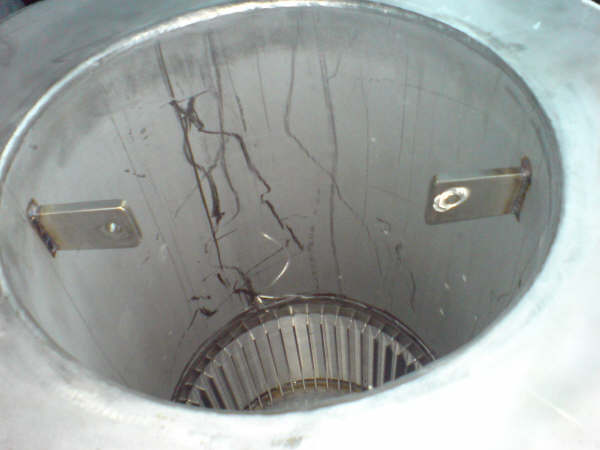

Newwin - Reactor Internals - Inlet Device



Construction Materials

• Stainless steels, 304H 316H 321 347



Characteristics

• Enhance the flow distribution

• Various



Typical Applications

• Reactors

• Scrubbing systems and absorbers

• Glycol dehydration

• Sulphuric acid drying towers

• Sulphur condensers

• Steam drums

• MSF/MED desalination



Benefits

• Good flow distribution

• Throughout the total area of bed

















Reactor Internals

Inlet Distributor & Outlet Collector

preventing:

media catalyst bed migration to downstream piping and equipment.

ensuring:

even flow distribution in the bottom bed to maximize catalyst or media utilization.

custom built:

to suit design loads and operating temperatures and allowable dP. in one piece or segmented or sectional construction for manway accessibility. in Stainless Steel 304, 316 or 321 grades
