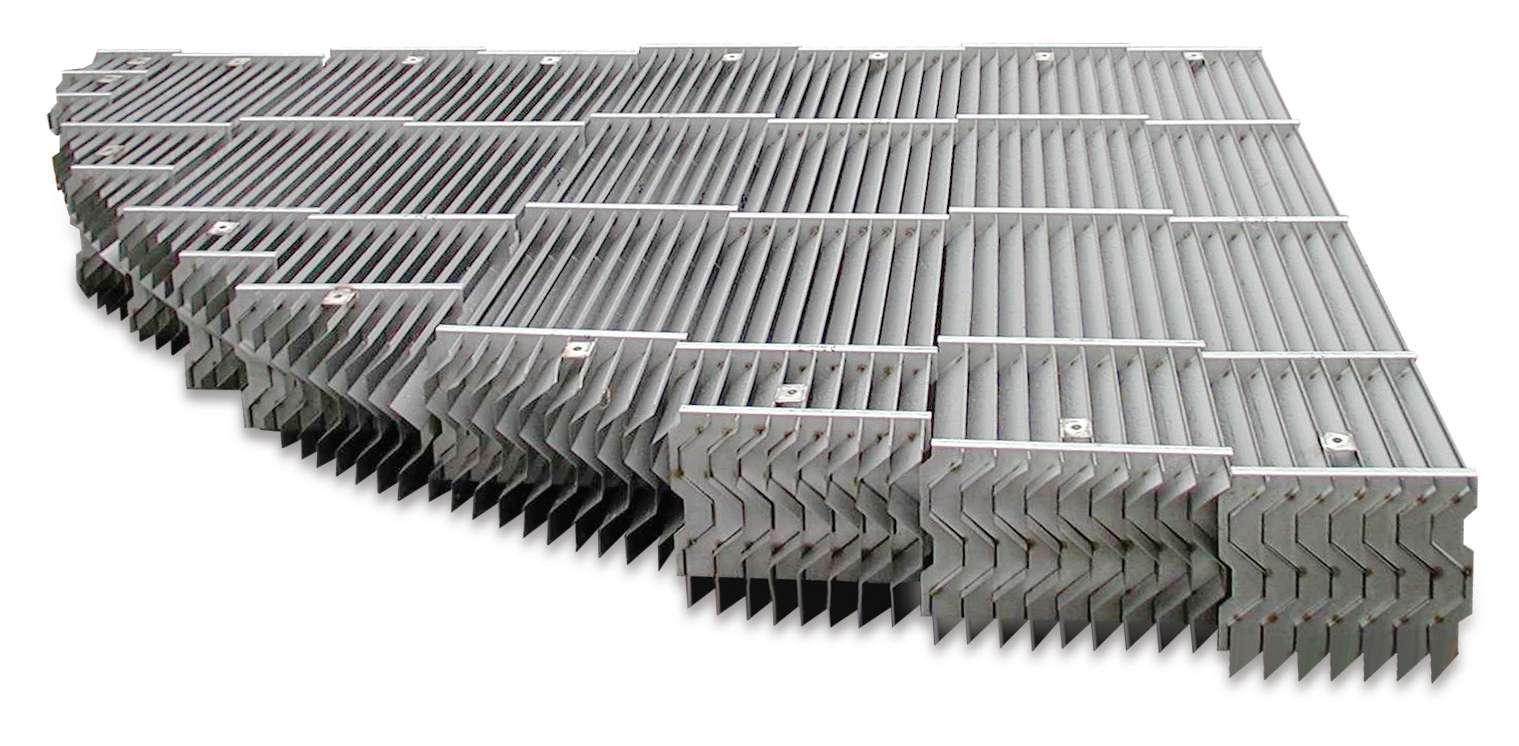

Newwin - Chevron Vane Pack Mist Eliminator



Construction Materials

• Stainless steels, duplex steel

• Alloy C276, 400, 625, 825, 20, etc...

• Thermal-set plastics, FRP




Characteristics

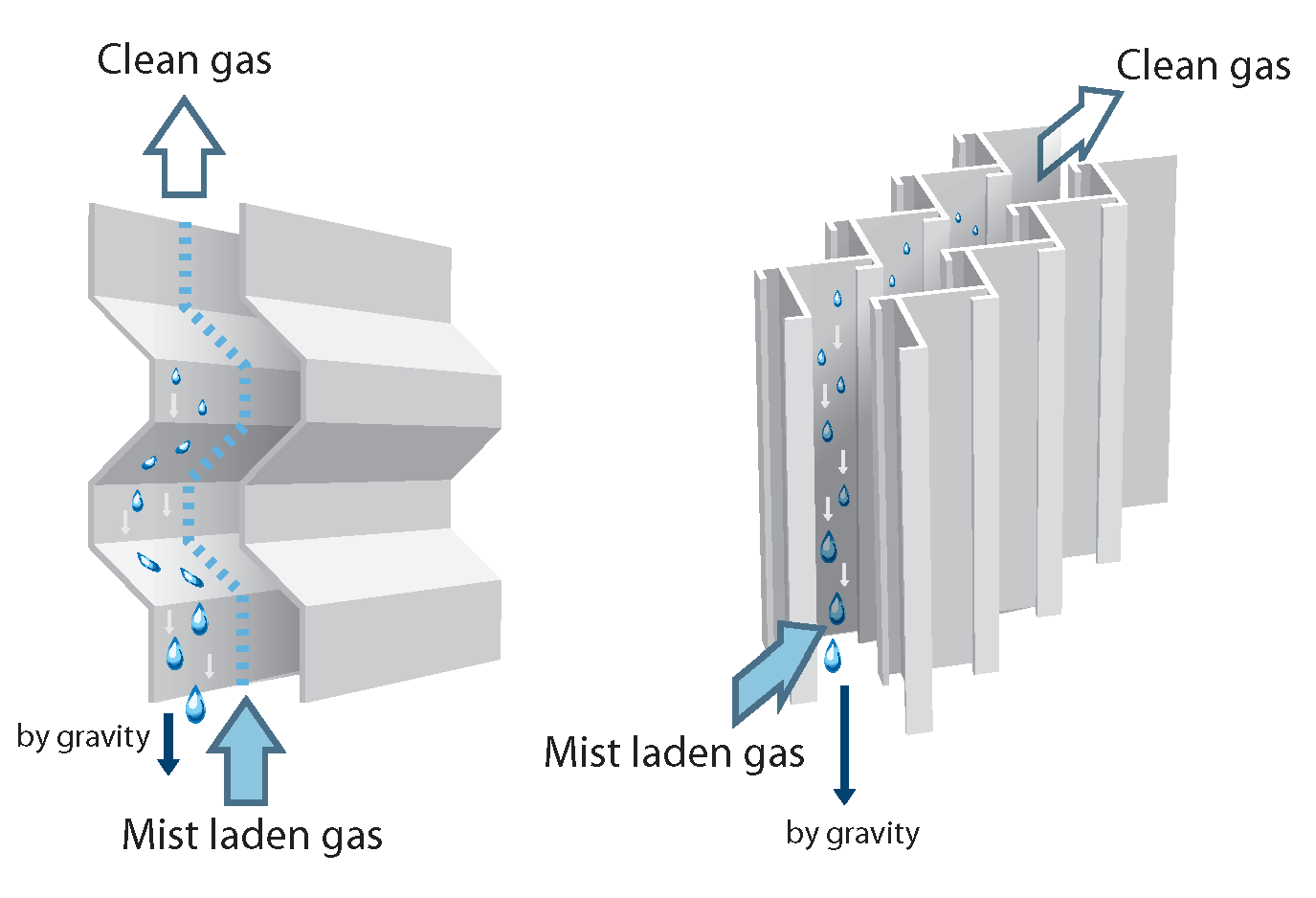

• Separation of the droplets by impingement on the vanes

• Banks of parallel vane profi les

• Large open area

• Made out of sections

• Secured with bolting, clamps,etc

Typical Applications

• Low Pressure Evaporators

• Refi nery Vacuum towers

• Scrubbers in fl ue gas desulfurization (FGD)

systems

• Pulp and Paper mills

• Sugar refi neries





Benefits

• Good collection effi ciency (100% of 8 - 40

microns in diameter)

• Low pressure drop

• Suitable for applications where solids or

sticky and viscous liquids are present

• Can be used in both vertical and horizontal

gas fl ow

• Suitable for higher liquid and gas loads












Industries We Serve

  • Petrochemical
  • Oil & Gas
  • Environmental
  • Sulphuric Acid
  • Fine Chemicals
  • Fertilizers
  • Metallurgical
  • Chlorine
  • Oil Refinery
  • Environmental Control
  • Pulp & Paper
